Quality Assurance

We are committed to offering the highest quality at every level. Our ISO certified facilities, check, recheck and then check every product again at multiple levels to ensure that they are ready to meet the demanding needs of our clients. We follow TQM processes and have also imbibed the best practices in the industry to ensure that all quality criteria are diligently accomplished. We continue to introduce the latest protocols of quality control within our system and also continually make enhancements to our product portfolio so that we can remain at par with global standards.

Navkar Transcore Magnetic Material Testing Laboratory

  • Single Sheet Tester
  • Ring Core Tester
  • Power Analyser
  • Epstein Tester
  • Franklin Insulation Resistance Testing Machine

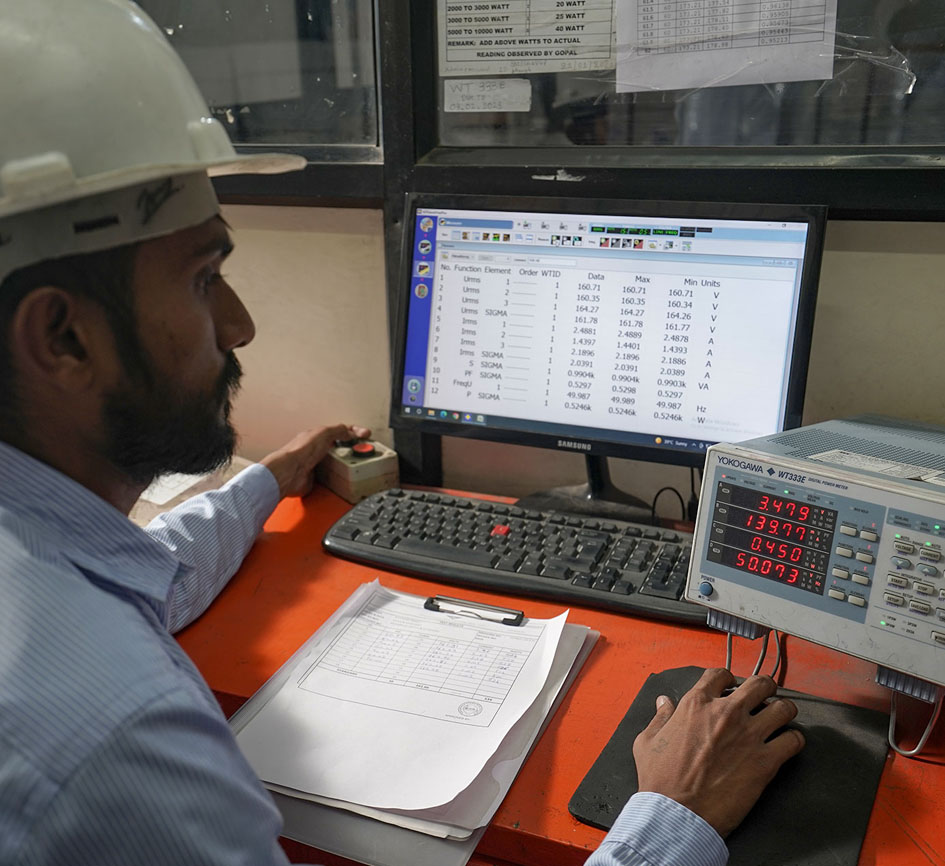

  • Yokogawa Testing Instruments
iso-9001-2008

We at ‘Navkar Transcore’ are
one of the leading manufacturers and suppliers
of Fabricated Cold Rolled Grain Oriented Silicon Steel Products

Standard Tolerance

No. Characteristics Acceptance Limit/Criteria
1 Width (mm) O to 100 (+/ -0.15), 100 to 130 (+/-0.20) 230 to 380 (+/-0.25), 380 to 580 (+/-0.40), 580 and above (+/-0.50)
2 Thickness (mm) ±0.03 mm
3 Edge Burrs (micron)
Thickness – mm
Upto .23
27 to .30
35
Burrs micron

10
15
20
4 Length (mm) Upto 350 (+0.00 / -0.30), 350 to 1000 (+0.00 / -0.60) 1000 to 2000 (+0.00 / -1.00), 2000 and above (+0.00 / -2.00)
5 Edge Camber For the material with a width greater than 150 mm, edge camber shall not exceed 0.8 mm for a length 1.5 meter
6 Wave Factor For a material of width greater than 150 mm the deviation from flatness expressed as (i.e Deviation From flatness) a percentage shall not exceed 1.5%.
7 Angle +/-5 Minutes
8 Stack Thickness of individual Stack except centre step Unclamped +1 -0 mm
